Supply Voltage：+24VDC
Output Signal：0 ~ 5V, 1 ~ 5V, 0 ~ 10V , (4 ~ 20mA), 20 ~ 4mA, 5 ~ 0V and other user-specific specifications.
High Speed Applications: up to (6,000 rpm) 10,000 rpm口
20,000 rpm口30,000 rpm口
Work environment：Operating temperature range -20℃~60℃
Overload Capacity: 200%
Accuracy：±0.1%口±0.25%, ±0.5%,口±1.0% (±0.25%)
Linearity：<0.1%
Long Term Stability ：<0.1% FS per year
With a humidity lower than 90%RH
Non-Contact (no slip rings)
No Electronic Components in Rotation
No Electrical Noise

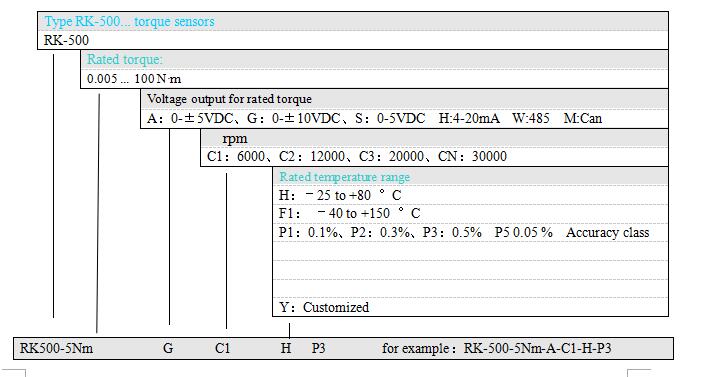

RK-500
1) Each type of irregular stress can only be permitted with its given limit value (bending moment, side load or axial load, exceeding the nominal
speed) if none of the others can occur. Otherwise the limit values must be reduced. If for instance 30 % of the bending moment and also 30 %
of the side load are present, only 40 % of the axial load are permitted, provided that the nominal torque is not exceeded. With maximum addi-
tional loading, measuring errors of the order of 1 % of the nominal torque can occur.
2) The nominal torque must not then be exceeded.

国产精品激情久久久,久久99亚洲精品久久,久久综合九色综合91,欧美亚洲国产精品第一页

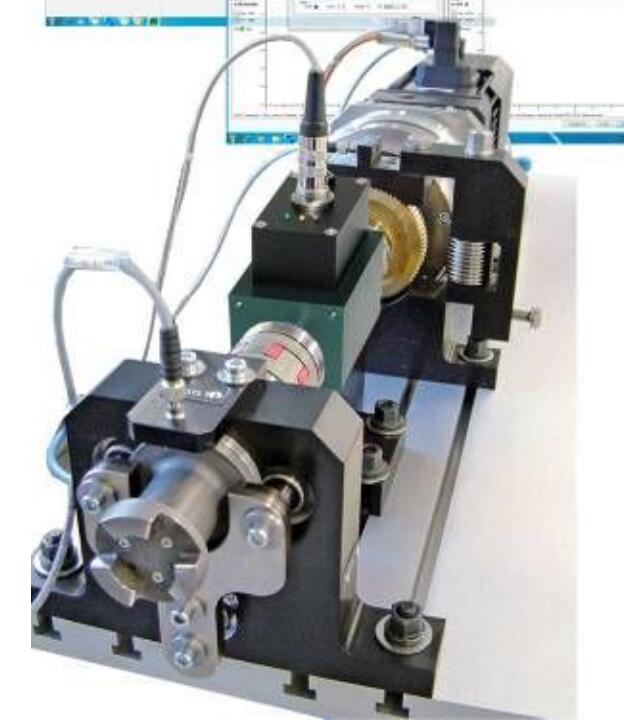

Small and handy Torque Sensor
