Reaction torque transducers type RK064ARD are
used for static and quasi-static applications.
By that way a maintenance-free torque
measuring is possible.
The applications are used for adjusting torque
at machine elements, measuring of stirring
devices and checking motors as well as
hydraulic pumps. These models are suitable
for all flange mounting situations.

Rated capacity	±1 N?m ~ ±3 kN?m
Safe overload	150 %R.C.
Ultimate overload	300 %R.C.
Supply Voltage： Rated output	8 to 30VDC(+24VDC)±15VDC 0 V ~ ±10 V0 V ~ ±5 V 4-20mA 5-15kHz 485 CAN
Accuracy of detected value	Digital : ±0.5 %R.O., Analog : ±0.25%R.O.±0.1%R.O. (including linearity, hysteresis and repeatablity.)

Excellent cost performance ratio
Accessories (to be ordered separately) :
Connecting , length 3 m

1) Each type of irregular stress can only be permitted with its given limit value (bending moment, side load or axial load, exceeding the nominal
speed) if none of the others can occur. Otherwise the limit values must be reduced. If for instance 30 % of the bending moment and also 30 %
of the side load are present, only 40 % of the axial load are permitted, provided that the nominal torque is not exceeded. With maximum addi-
tional loading, measuring errors of the order of 1 % of the nominal torque can occur.
2) The nominal torque must not then be exceeded.
* All are the gurantee over static load.

国产精品激情久久久,久久99亚洲精品久久,久久综合九色综合91,欧美亚洲国产精品第一页

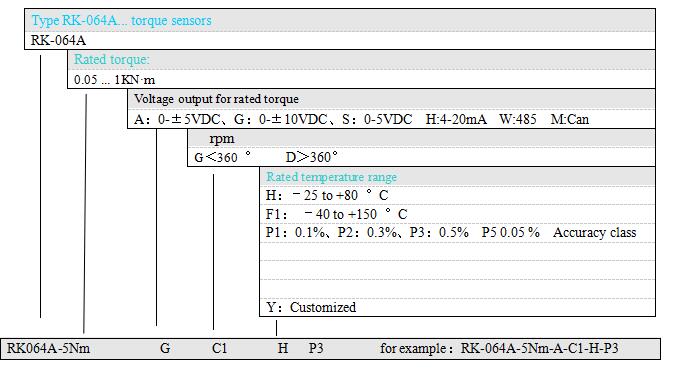

Torque transducer-RK-064A
